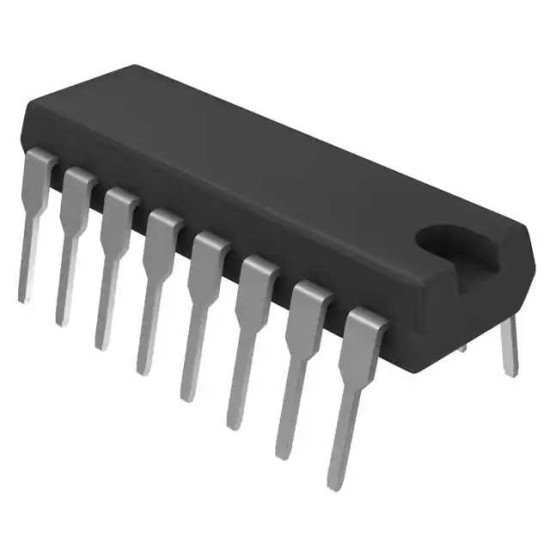

CD74HCT4046AE

IC, LOGIC, PLL W/VCO HS, 16DIP.

The CD74HCT4046AE is a high-speed CMOS logic Phase-locked Loop with VCO. High-speed silicon-gate CMOS device that is pin compatible with the CD4046B of the "4000B" series. They are specified in compliance with JEDEC standard number 7. The HCT4046A is phase-locked-loop circuits that contain a linear voltage-controlled oscillator (VCO) and three different phase comparators (PC1, PC2 and PC3). A signal input and a comparator input are common to each comparator. The signal input can be directly coupled to large voltage signals or indirectly coupled (with a series capacitor) to small voltage signals. A self-bias input circuit keeps small voltage signals within the linear region of the input amplifiers. With a passive low-pass filter, the 4046A forms a second-order loop PLL. The excellent VCO linearity is achieved by the use of linear op-amp techniques.
