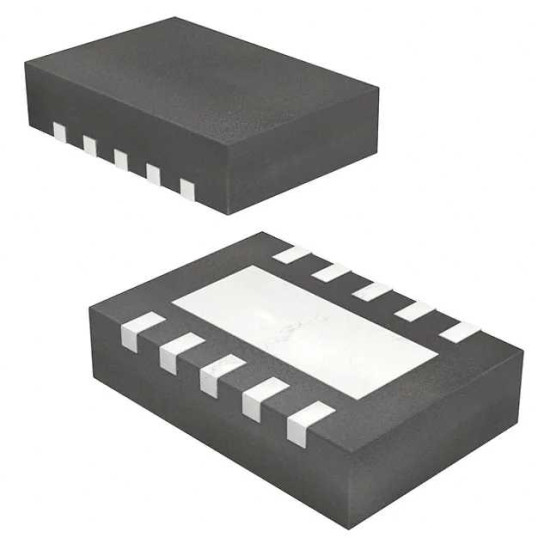

BQ25070DQCT

Зарядное устройство для 1-элементной LiFePO4 батареи, 10.2В вход, 3.5В/1A зарядка, WSON-10.

The BQ25070DQCT is a highly integrated LiFePO4 linear Battery Charger targeted at space-limited portable applications. It operates from either an USB port or AC Adapter and charges a single-cell LiFePO4 battery with up to 1A of charge current. The 30V input voltage range with input over-voltage protections supports low-cost unregulated adapters. It has a single power output that charges the battery and powers the system. The charge current is programmable up to 1A using the CTRL input. Additionally, a 4.9V ±10% 50mA LDO is integrated into the IC for supplying low power external circuitry. The LiFePO4 charging algorithm removes the constant voltage mode control usually present in Li-ion battery charge cycles. Instead, the battery is fast charged to the overcharge voltage and then allowed to relax to a lower float charge voltage threshold. The removal of the constant voltage control reduces charge time significantly.
