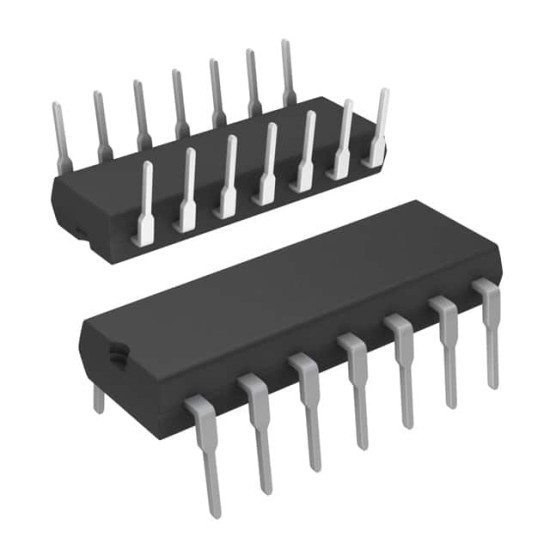

UA723CNG4

IC, REG 0.15A ADJ, DIP14, 723.

The UA723CNG4 is a precision Voltage Regulator featuring high ripple rejection, excellent input and load regulation, excellent temperature stability and low standby current. The circuit consists of a temperature-compensated reference-voltage amplifier, an error amplifier, a 150mA output transistor and an adjustable-output current limiter. The device is designed for use in positive or negative power supplies as a series, shunt, switching or floating regulator. For output currents exceeding 150mA, additional pass elements can be connected.
