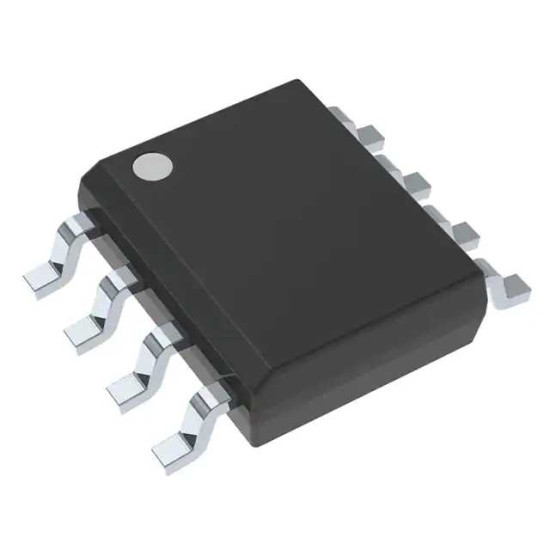

TPS3305-33D

Двойная схема контроля, активный высокий, выход сброса с активным низким, 2 монитора, 2.7В-6В (Vin).

The TPS3305-33D is a dual processor Supervisory Circuit with active-low push-pull output. The MicroPower supply voltage supervisor designed for circuit initialization. Its dual monitor topology is well-suited to use in DSP and processor-based systems, which often require two supply voltages, core and I/O. /RESET is asserted when the voltage at either SENSEn pin falls below its threshold voltage, VIT. When both SENSEn pins are again above their respective threshold voltages, /RESET is held low for the factory-programmed delay time (200ms typical). /RESET is also asserted if the watchdog input (WDI) is not toggled for more than 1.6s typical.
