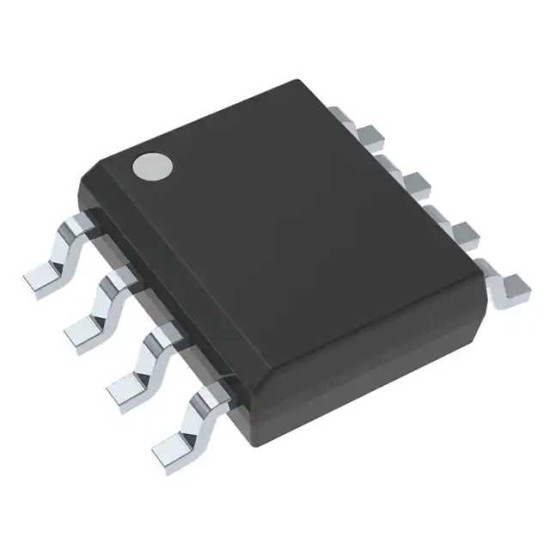

TPS3306-18D

Схема контроля микроконтроллера 1.8В, выход сброса с активным низким, 2-Monitors, 2.7В-6В (Vin).

The TPS3306-18D is a dual-processor Supervisory Circuits with active-low open-drain output. It is designed for circuit initialization which requires two supply voltages, primarily in DSP and processor-based systems. The supervisory circuit is designed to monitor the nominal supply voltage. During power-on, /RESET is asserted when the supply voltage VDD becomes higher than 1.1V. Thereafter, the supervisory circuit monitors the SENSEn input and keeps /RESET active as long as SENSEn remains below the threshold voltage VIT. An internal timer delays the return of the /RESET output to the inactive state (high) to ensure proper system reset. The delay time, td(typ)=100ms, starts after SENSE1 and SENSE2 inputs have risen above the threshold voltage VIT. When the voltage at SENSE1 or SENSE2 input drops below the threshold voltage VIT, the output becomes active (low) again.
