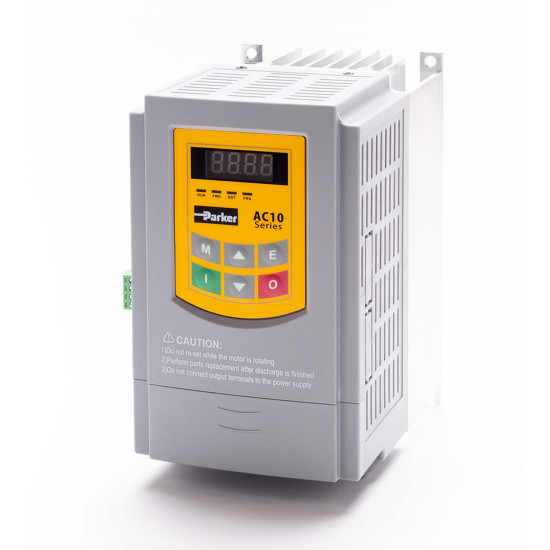

REFURBISHED Parker AC10 IP203PH, 400V1.5kW Brake SwitchFilter

The Range:
The AC10 IP20 range is a Parker Inverter circa 2014 to date.

Frame Sizes:
Below are the power ratings for the different options and frame sizes. TOF = Top of Frame.

1PH, 230V
Frame 1 (0.2, 0.37, 0.55, 0.75) kW [TOF: 10G-11-0045-BF]
Frame 2 (1.1, 1.5, 2.2) kW [TOF: 10G-12-0100-BF]

3PH, 230V
Frame 1 (0.2, 0.37, 0.55, 0.75) kW [TOF: 10G-31-0045-BF]
Frame 2 (1.1, 1.5, 2.2) kW [TOF: 10G-32-0100-BF]
Frame 3 (4) kW [TOF: 10G-33-0170-BF]
Frame 4 (5.5) kW [TOF: 10G-34-0210-BF]
Frame 5 (7.5, 11) kW [TOF: 10G-35-0400-BF]
Frame 6 (15) kW [TOF: 10G-36-0550-BF]

3PH, 400V
Frame 1 (0.2, 0.37, 0.55) kW [TOF: 10G-41-0015-BF]
Frame 2 (0.75, 1.1, 1.5, 2.2) kW [TOF: 10G-42-0065-BF]
Frame 3 (3, 4, 5.5) kW [TOF: 10G-43-0120-BF]
Frame 4 (7.5, 11) kW [TOF: 10G-44-0230-BF]
Frame 5 (15, 18.5, 22) kW [TOF: 10G-45-0440-BF]
Frame 6 (30) kW [TOF: 10G-46-0600-BF]
Frame 7 (37, 45) kW [TOF: 10G-47-0900-BF]
Frame 8 (55, 75) kW [TOF: 10G-48-1500-BF]
Frame 9 (90, 110) kW [TOF: 10G-49-2200-BF]
Frame 10 (132) kW [TOF: 10G-410-2650-BF]
Frame 11 (160, 180) kW [TOF: 10G-411-3600-BF]

Frame Dimensions:
Frame 1 (80(W) x 138(H) x 135(D) mm) – approx. 1.25kg
Frame 2 (106(W) x 180(H) x 150(D) mm) – approx. 1.76kg
Frame 3 (138(W) x 235(H) x 152(D) mm) – approx. 2.96kg
Frame 4 (156(W) x 265(H) x 170(D) mm) – approx. 4.9kg
Frame 5 (205(W) x 340(H) x 196(D) mm) – approx. 7.5kg
Frame 6 (265(W) x 435(H) x 235(D) mm) – approx. 17kg
Frame 7 (315(W) x 480(H) x 234(D) mm) – approx. 25kg
Frame 8 (360(W) x 555(H) x 265(D) mm) – approx. 40kg
Frame 9 (410(W) x 630(H) x 300(D) mm) – approx. 55kg
Frame 10 (516(W) x 765(H) x 326(D) mm) – approx. 94kg
Frame 11 (560(W) x 910(H) x 342(D) mm) – approx. 120kg

Options:
There are a number of external options available for the drive for the drive:
IP20 Remote Mounting Keypad [1001-00-00]
AC10 Clone Module and Programming Adapter [1002-00-00]
