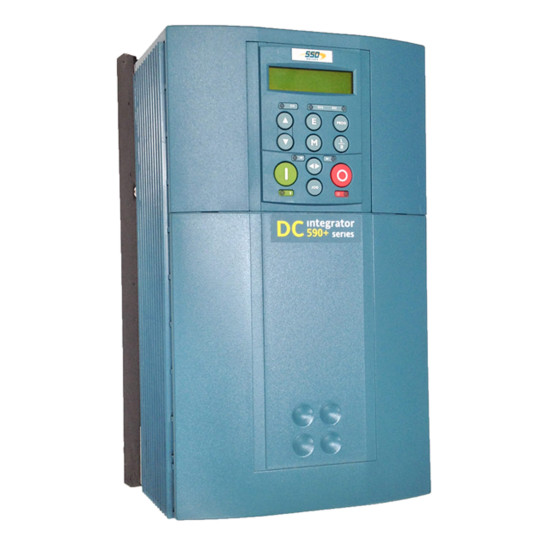

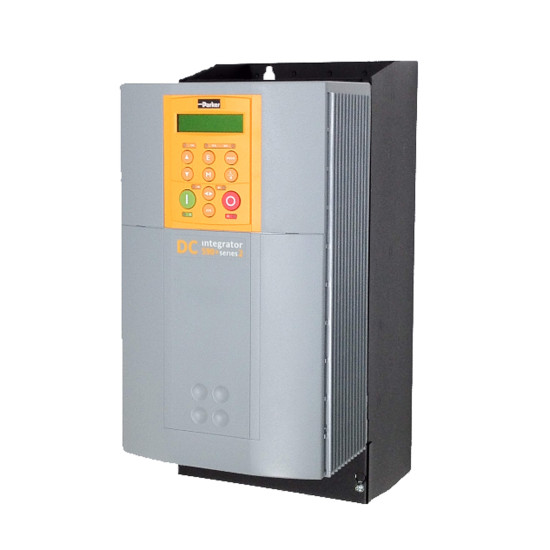

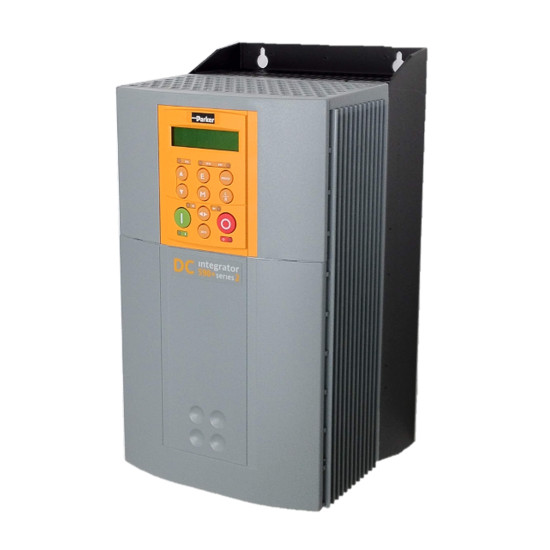

REFURBISHED Parker 590 Regen Digital Drive3PH, 220-500V380A 115V Aux

The Range:
The 590P range is a 4 Quadrant Parker SSD Drive.
The 591P range is a 2 Quadrant Parker SSD Drive.

Frame Sizes:
Below are the power ratings for the different options and frame sizes. TOF = Top of Frame.

590P/591P
3PH, 4Q, 110-220V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-23235010-P00-U4V0 / 591P-23235010-P00-U4V0]
Frame 2 (40, 70, 110, 165) A [TOF: 590P-23316520-P00-U4V0 / 591P-23316520-P00-U4V0]

3PH, 4Q, 110-220V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-23327031-P00-U4V0 / 591P-23327031-P00-U4V0]
Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383041-P00-U4V0 / 591P-23383041-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-23415851-P00-U4V0 / 591P-23415851-P00-U4V0]

3PH, 4Q, 110-220V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-23327032-P00-U4V0 / 591P-23327032-P00-U4V0]
Frame 4 (380, 500, 725, 830) A [TOF: 590P-23383042-P00-U4V0 / 591P-23383042-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-23415852-P00-U4V0 / 590P-23415852-P00-U4V0]

3PH, 4Q, 220-500V Supply, Universal Aux
Frame 1 (15, 35) A [TOF: 590P-53235010-P00-U4V0 / 591P-53235010-P00-U4V0]
Frame 2 (40, 70, 110, 165) A [TOF: 590P-53316520-P00-U4V0 / 591P-53316520-P00-U4V0]
Frame 6 (1250, 1600, 1950) A [TOF: 590P-53419560-P00-U4V0 / 591P-53419560-P00-U4V0]
Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-534270H0-P00-U4V0 / 591P-534270H0-P00-U4V0]

3PH, 4Q, 220-500V Supply, 115V Aux
Frame 3 (180, 270) A [TOF: 590P-53327031-P00-U4V0 / 591P-53327031-P00-U4V0]
Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383041-P00-U4V0 / 591P-53383041-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-53415851-P00-U4V0 / 591P-53415851-P00-U4V0]

3PH, 4Q, 220-500V Supply, 230V Aux
Frame 3 (180, 270) A [TOF: 590P-53327032-P00-U4V0 / 591P-53327032-P00-U4V0]
Frame 4 (380, 500, 725, 830) A [TOF: 590P-53383042-P00-U4V0 / 591P-53383042-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-53415852-P00-U4V0 / 591P-53415852-P00-U4V0]

3PH, 4Q, 500-600V Supply, 115V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383041-P00-U4V0 / 591P-63383041-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-63415851-P00-U4V0 / 591P-63415851-P00-U4V0]

3PH, 4Q, 500-600V Supply, 230V Aux
Frame 4 (380, 500, 725, 830) A [TOF: 590P-63383042-P00-U4V0 / 591P-63383042-P00-U4V0]
Frame 5 (1580) A [TOF: 590P-63415852-P00-U4V0 / 591P-63415852-P00-U4V0]

3PH, 4Q, 500-690V Supply, Universal Aux
Frame 6 (1250, 1600, 1950) A [TOF: 590P-73419560-P00-U4V0 / 591P-73419560-P00-U4V0]
Frame H (1200, 1700, 2200, 2700) A [TOF: 590P-734270H0-P00-U4V0 / 591P-734270H0-P00-U4V0]

Frame Dimensions:
Frame 1 (200(W) x 375(H) x 220(D) mm) – approx. 6.4kg
Frame 2 (200(W) x 434(H) x 292(D) mm) – approx. 10.5kg
Frame 3 (180A) (250(W) x 485(H) x 234(D) mm) – approx. 20kg
Frame 3 (270A) (300(W) x 485(H) x 234(D) mm) – approx. 20kg
Frame 4 (253(W) x 700(H) x 358(D) mm) – approx. 44kg
Frame 5 (506(W) x 700(H) x 358(D) mm) – approx. 90kg
Frame 6 (686(W) x 715(H) x 378(D) mm) – approx. 110kg
Frame H (850(W) x 956(H) x 417(D) mm) – approx. 270kg

Options:
There are a number of language options available for each drive. All drives must now be sold with

Keypads. There are also a number of purchasable additional options listed below:

Note: the last block of the part number contains 4 digits, the last 3 of which denote the purchasable options. These will be referred to as option X, Y, and Z (XYZ).

Option X
0 – No Keypad
4 – 6901 Keypad [6901-00-G]
Option Y
A – Analog Tacho [AH500935U001-2]
G – Glass Fiberoptic Encoder [5901/1]
P – Plastic Fiberoptic Encoder [5701/1]
V – Armature Voltage [Fitted as standard]
W – Wire-ended Encoder [AH387775U001-1]

Option Z
0 – None
C – ControlNet [6053-CNET-00-G]
D – DeviceNet [6055-DNET-00]
E – Ethernet [6055-ENET-00]
L – Link [6055-LINK-00]
M – ModBus+ [6055-MBP-00]
N – CanOpen [6055-CAN-00]
P – Profibus [6055-PROF-00]
R – RS485 / RS422 [6055-EI00-00]

Additional Options
A – Airflow Kit [LA466717U001-1]
