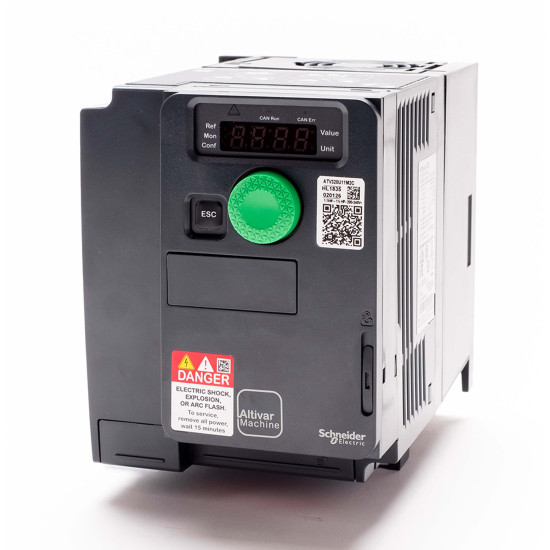

Schneider Altivar ATV320 “Book” IP20 AC Drive1PH, 200/240VAC0.75kW

The Range:
The ATV320 comes in 2 distinct shapes – ‘Compact’ control block and ‘Book’ control block.

Frame Sizes:
Below are the power ratings for the different options and frame sizes. TOF = Top of Frame.

Compact

1PH, 230V
Frame 1C (0.18, 0.37, 0.55, 0.75) kW [TOF: ATV320U07M2C]
Frame 2C (1.1, 1.5, 2.2) kW [TOF: ATV320U22M2C]

3PH, 380 / 500V
Frame 2C (0.37, 0.55, 0.75, 1.1, 1.5) kW [TOF: ATV320U15N4C]
Frame 3C (2.2, 3, 4) kW [TOF: ATV320U40N4C]
Book

1PH, 230V
Frame 1C (0.18, 0.37, 0.55, 0.75) kW [TOF: ATV320U07M2B]
Frame 2C (1.1, 1.5, 2.2) kW [TOF: ATV320U22M2B]

3PH, 380 / 500V
Frame 1B (0.37, 0.55, 0.75, 1.1, 1.5) kW [TOF: ATV320U15N4B]
Frame 2B (2.2, 3, 4) kW [TOF: ATV320U40N4B]
Frame 4B (5.5, 7.5) kW [TOF: ATV320U75N4B]
Frame 5B (11, 15) kW [TOF: ATV320D15N4B]

Frame Dimensions:
Frame 1C (72(W) x 143(H) x 132(D) mm) – approx. 1.1kg
Frame 2C (105(W) x 188(H) x 152(D) mm) – approx. 1.3kg
Frame 3C (140(W) x 228(H) x 152(D) mm) – approx. 2.2kg
Frame 1B (45(W) x 325(H) x 245(D) mm) – approx. 1.8kg
Frame 2B (60(W) x 325(H) x 245(D) mm) – approx. 2.2kg
Frame 4B (150(W) x 308(H) x 232(D) mm) – approx. 4.4kg
Frame 5B (178(W) x 404(H) x 232(D) mm) – approx. 6.8kg
