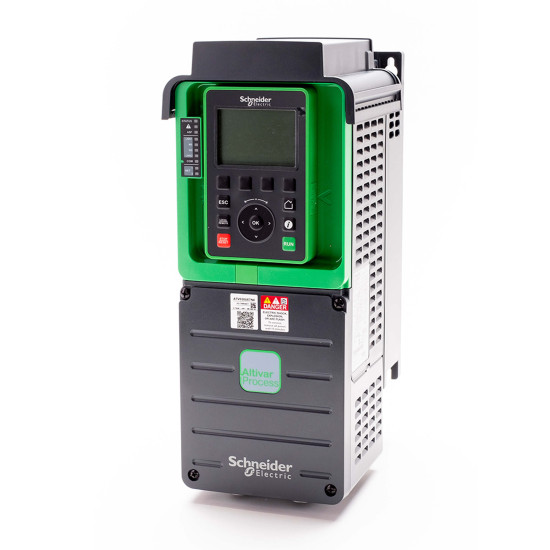

Schneider Altivar ATV930 IP21 AC Drive3PH, 380/480VAC15kW

The Range:
The ATV930 comes in multiple variations: different IP ratings, different mountings, different filters
and with or without braking units.
For clarity, we stock the IP21 units, with brake filter, wall-mounted, with integrated filter.

Frame Sizes:
Below are the power ratings for the different options and frame sizes. TOF = Top of Frame.

IP21 3PH, 380 / 480V
Frame 1 (0.75, 1.5, 2.2, 3, 4, 5.5) kW [TOF: ATV930U55N4]
Frame 2 (7.5, 11) kW [TOF: ATV930D11N4]
Frame 3 (15, 18.5, 22) kW [TOF: ATV930D22N4]
Frame 4 (30, 37, 45) kW [TOF: ATV930D45N4]
Frame 5 (55, 75, 90) kW [TOF: ATV930D90N4 / ATV930D90N4C]
Frame 6 (110, 132, 160) kW [TOF: ATV930C16N4C]
Frame 7A (220) kW [TOF: ATV930C22N4 / ATV930C22N4C]
Frame 7B (250, 315) kW [TOF: ATV930C31N4C]

Frame Dimensions:
Frame 1 (144(W) x 350(H) x 206(D) mm) – approx. 4.7kg
Frame 2 (171(W) x 409(H) x 236(D) mm) – approx. 7.7kg
Frame 3 (211(W) x 546(H) x 235(D) mm) – approx. 14.3kg
Frame 4 (226(W) x 673(H) x 271(D) mm) – approx. 28.7kg
Frame 5 (290(W) x 922(H) x 323(D) mm) – approx. 59.5kg
Frame 6 (320(W) x 852(H) x 393(D) mm) – approx. 82kg
Frame 7A (440(W) x 1196(H) x 380(D) mm) – approx. 172kg
Frame 7B (598(W) x 1196(H) x 380(D) mm) – approx. 203kg
