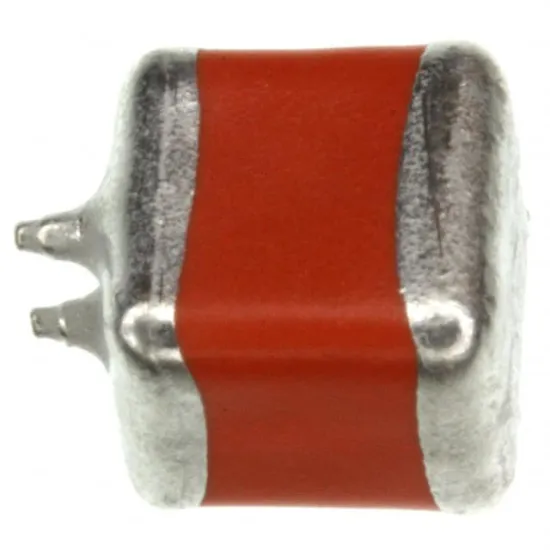

Surface Mount Tantalum Capacitor, 47 мкФ, 50 В, 3024 [7660 Метрический], TANTAMOUNT 597D Series.
The 597D476X0050Z2T is a solid tantalum surface mount Chip Capacitor with 100% tin termination. The 597D series TANTAMOUNT® capacitor is preferred for filtering applications in small power supplies and DC/DC converters. Preferred for their high reliability, long life, extended shelf life, exceptional stability with temperature and their small size. It consists of a sintered tantalum pellet, the anode, on which a tantalum oxide dielectric is formed by electrolysis. The pellet is then coated with manganese dioxide for the cathode. Positive and negative terminations are attached to this pellet and the assembly may be conformally-coated or moulded.
- Ultra-low ESR
- Conformal coated
- Maximum CV
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jan-2019) |
| Вес | 0.93г |
| Допуск Емкости | ± 20% |
| Емкость | 47мкФ |
| Код Размера Производителя | Z |
| Корпус Танталового Конденсатора | 3024 [7660 Метрический] |
| Линейка Продукции | TANTAMOUNT 597D Series |
| Максимальная Рабочая Температура | 125°C |
| Минимальная Рабочая Температура | -55°C |
| Номинальное Напряжение | 50В |
| Эффективное Последовательное Сопротивление | 0.24Ом |
