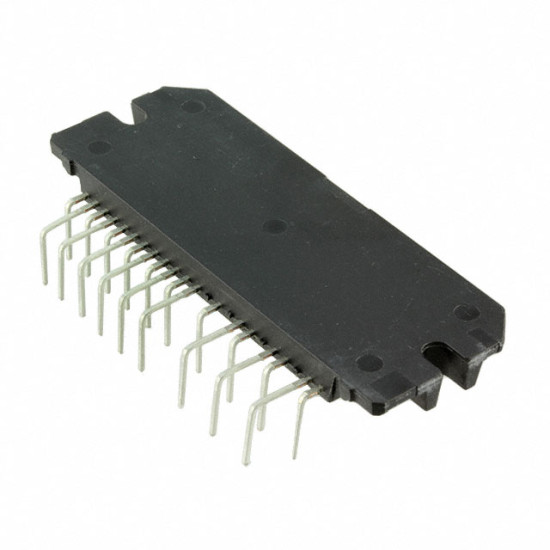

STK541UC60C-E

Умный модуль питания (IPM), IGBT, 2 кВ, SIP.

The STK541UC60C-E from On Semiconductor is a 600V, 10A intelligent power module (IPM) in SIP23 56mm x 21.8mm package. This "Inverter IPM" is highly integrated device containing all high voltage (HV) control from HV-DC to 3-phase outputs in a single SIP module (Single-In line Package). Output stage uses IGBT/FRD technology and implements under voltage protection (UVP) and over current protection (OCP) with a Fault Detection output flag. Internal boost diodes are provided for high side gate boost drive.

• Single control power supply due to Internal bootstrap circuit for high side pre-driver circuit
• All control input and status output at low voltage levels directly compatible with microcontrollers
• Built-in cross conduction prevention
• Supply voltage is 450V
• Maximum power dissipation is 22W
• Output peak current is 20A
• Isolation voltage is 2000VRMS
• UL recognized (file number E339285)
