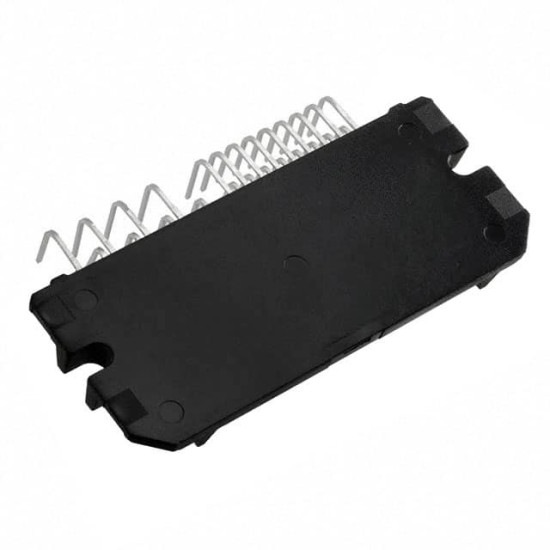

STK57FU394AG-E

Умный модуль питания (IPM), IGBT, 600 В, 15 А, 2000 В СКЗ, SIP.

The STK57FU394AG-E from On Semiconductor is a 600V, 15A 2-in-1 PFC and inverter Intelligent Power Module (IPM) in 35 pin SIP package. The STK57FU394AG-E is a fully-integrated PFC and inverter power stage consisting of a high-voltage driver, six motor drive IGBTs, one PFC IGBT, one PFC rectifier and a thermistor suitable for driving permanent magnet synchronous (PMSM) motors, brushless-DC (BLDC) motors and AC asynchronous motors. The IGBTs are configured in a 3-phase bridge with separate emitter connections for the lower legs for maximum flexibility in the choice of control algorithm. An internal comparator and reference connected to the over-current protection circuit allows the designer to set individual over-current protection levels for the PFC and the inverter stages. Additionally, the power stage has a full range of protection functions including cross conduction protection, external shutdown and under-voltage lockout functions.

• Simple thermal design with PFC and inverter stage in one package
• PFC operating frequency up to 40KHz
• Cross conduction protection, adjustable overcurrent protection level
• Integrated bootstrap diodes and resistors
• Certified by UL1557 file number E339285
