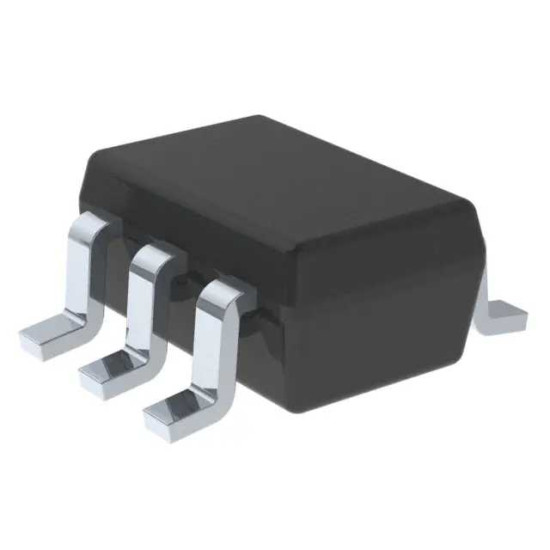

SN74LVC1G98DCKT

Многофункциональный логический элемент, семейство LVC, 3 входа, 32мА, 1.65В до 5.5В, SC-70-6.

The SN74LVC1G98DCKT is a configurable Multiple-Function Gate. The output state is determined by eight patterns of 3-bit input. The user can choose the logic functions MUX and or, NAND, NOR, inverter and non-inverter. All inputs can be connected to VCC or GND. This device functions as an independent gate, but because of Schmitt action, it may have different input threshold levels for positive-going (VT+) and negative-going (VT-) signals. This device is fully specified for partial-power-down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.
