STM32F4DIS-CAM
- Наличие: Под заказ 3-4 недели
0 ₽
Дочерняя плата для модуля камеры, цифровая камера 1.3Мп, разрешение до 1280x1024.

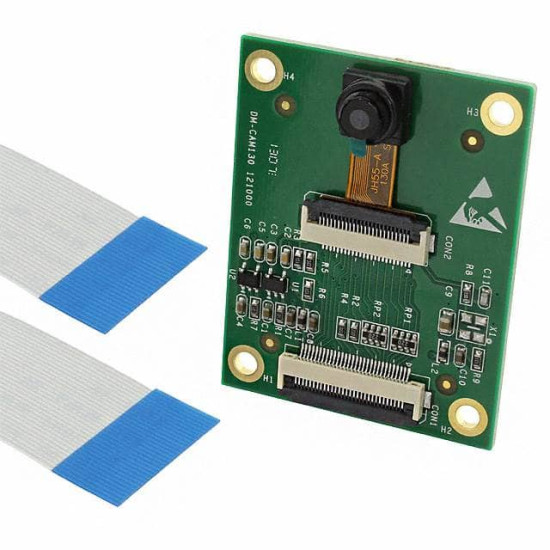

The STM32F4DIS-CAM is a camera board for the STM32F4 discovery kit. This digital camera board featuring a 1.3Megapixel CMOS sensor connect to the base board to form a complete system. The STM32F4DISCOVERY is to discover the STM32F407/417 line features and to develop our applications easily. It includes everything required for beginners and experienced users to get started quickly. Based on the STM32F407VGT6, discovery kit includes an ST-LINK/V2 embedded debug tool, two ST MEMS, digital accelerometer and digital microphone, one audio DAC with integrated class D speaker driver, LEDs and push buttons and an USB OTG micro AB connector.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (17-Dec-2015) |
| Архитектура Ядра | ARM |
| Для Использования с | STM32F4-DISCOVERY Board |
| Линия Продукции | - |
| Название Семейства Чипа | STM32F4xx |
| Номер Ядра Чипа | STM32 |
| Особенности | 1.3Megapixel Digital Camera, Up to 1280x1024 res + still photos + 15 or 30 FPS support |
| Подархитектура Ядра | Cortex-M4F |
| Производитель Чипа | STMicroelectronics |
| Содержимое Комплекта | Daughter Board for Camera Module |
