TMDSCNCD28069
- Наличие: Под заказ 3-4 недели
14 227 ₽
C2000 controlCARD для производителей, микроконтроллер Piccolo F2806x, DIMM интерфейс, 9см x 2.5см.

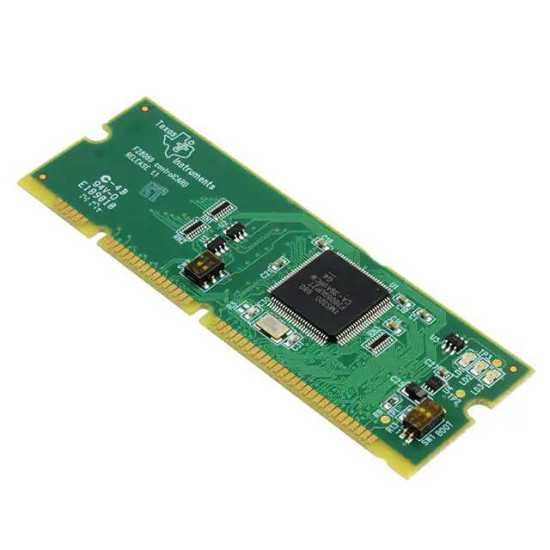

The TMDSCNCD28069 is a C2000 controlCARDs for OEMs to use for initial software development and short run builds for system prototypes, test stands and many other projects that require easy access to high-performance controllers. The controlCARDs are complete board-level modules that utilize an industry-standard DIMM form factor to provide a low-profile single-board controller solution. The controlCARDs use the 100-pin connector footprint to provide the analogue and digital I/Os on-board controller and are completely interchangeable. The host system needs to provide only a single 5V power rail to the controlCARD for it to be fully functional.
| Характеристики | |
| SVHC (Особо Опасные Вещества) | No SVHC (15-Jun-2015) |
| Для Использования с | controlCARD Base Boards or Compatible Boards with 100pin DIMM Interface |
| Линия Продукции | - |
| Название Семейства Чипа | TMS320F280x |
| Номер Ядра Чипа | TMS320F28069 |
| Особенности | Piccolo F2806x Family MCU, 100pin DIMM Interface, 9cm x 2.5cm Form Factor, Single 5V Operation |
| Подархитектура Ядра | C2000 |
| Производитель Чипа | Texas Instruments |
| Содержимое Комплекта | controlCARD TMS320F28069 |
